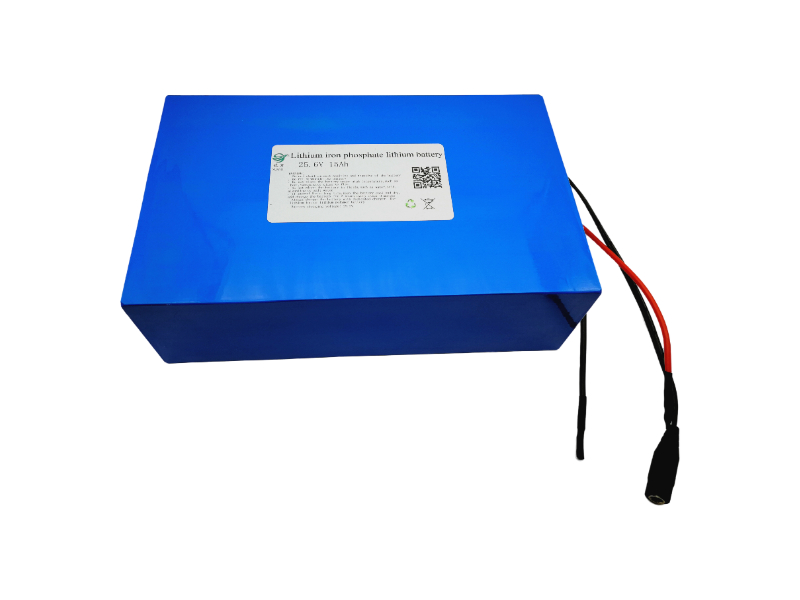

25.6V lithium iron phosphate battery Product model: XL 25.6V 15000mAh
Technical parameters of 25.6V lithium iron phosphate battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 26650
·Single battery voltage: 3.2V
·Nominal voltage of the battery pack after assembly: 25.6V
·Single battery capacity: 3Ah
·Battery combination: 8 series 5 parallel
·Voltage range of the combined battery: 20~29.2V
·Combined battery capacity: 15Ah
·Battery pack power: 384Wh
·Battery pack size: 70*140*224mm
·Maximum discharge current: <15A
·Instantaneous discharge current: 30~45A
·Maximum charging current: 0.2~0.5C
·Charging and discharging time: > 1000 times
·Main chip: Seiko or Ricoh
25.6V lithium iron phosphate battery
·Comply with the national standards and requirements related to batteries
·All finished batteries have been calibrated and tested before leaving the factory and can be used directly.
